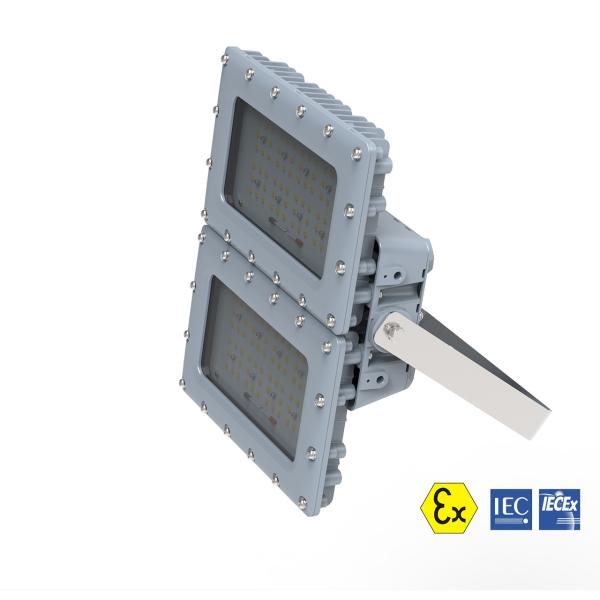

Hazardous location LED Explosion Proof Light 160W 200W 240W-Tank
series Simplified Version
LED Explosion Proof Light Tank series 160W 200W 240W Simplified
Version.
Highlight: LED Hazardous Location Lighting, Explosion proof Led light.
Features And Benefits:
1. Explosion proof LED lighting for Hazardous location Zone
1&Zone 2 and Zone 21&Zone 22.
2. High strength aluminum housing, shock and impact resistant.
3. Tempered glass with thickness 10mm.
4. Simplified version come with 1 LED Driver for 2 lamps.
5. High efficient LED technology and Long lifespan more than 50,000
hours.
6. Low THD, reduce the interference.
7. Ambient temperature from -40℃ to 55℃.
8. Surge protection:6KV.
9. 5 Years performance warranty.
Product Important Information:
| Type Of Protection | Ex db ,Ex tb |
| Protection Standards | (IEC)EN 60079-0, (IEC)EN 60079-1, (IEC)EN 60079-28, (IEC)EN
60079-31
EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3,
EN 60598-1, EN 60598-2-5, EN 62031, EN 62493,
IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC
62321-7-2, IEC 62321-8 |
| Area Classfiction | Zone 1 and Zone 2 Areas to (IEC)EN 60079-10-1,
Zone 21 and Zone 22 Areas to (IEC)EN 60079-10-2 |
| Installation | (IEC)EN 60079-14 |
| Certificate | pending |
| Equipment Coding | II 2 G Ex db IIC T* Gb
II 2 D Ex tb IIIC T* Db IP66 |
| Temperature Class | Rated power (W) | -40℃ ≤ Ta ≤ +55℃ |
| Gas | Dust |
| 160W~240W | T5 | T95℃ |
| ATEx Coding |  II 2 G / II 2 D |
| Ingress Protection | IP66 (IEC)EN 60529 |
| Cable entry | M20*1.5,M25*1.5,3/4 NPT |
| CE Mark | The CE marking of this product applies to EU directives 2014/35/EU,
2014/30/EU, 2012/19/EU , 2011/65/EU and 2014/34/EU respectively.
The Equipment is declared to meet the provisions of the ATEX
directive(2014/34/EU)by reason of the EC
Type Examination and compliance with the Essential Health and
Safety Requirements |
Applications:
Offshore platforms,Jetty ports,Oil and gas terminals,Gas
station,Refineries and Petrochemical plants,Sewage treatment
plants,Power plants.
Ordering information:
| P/N | Operating Voltage(V) | Luminous Flux(lm) | Power
(W) | CRI | Color Temp. | CCT(K) | Temp. Classification |
| Ex-KTK160**CH-S2-E |
100-277 VAC
(141-392 VDC) | 22910 |
160 | 70 | Cool white | 5700K±300K | T5 |
| Ex-KTK160**NH-S2-E | 22910 | 70 | Natural white | 5000K±300K | T5 |
| Ex-KTK160**NH-S2-E | 22910 | 70 | Natural white | 4000±300k | T5 |
| Ex-KTK160**WM-S2-E | 20619 | 70 | Warm white | 3000±300k | T5 |
| Ex-KTK200**CH-S2-E | 29145 |
200 | 70 | Cool white | 5700±300k | T5 |
| Ex-KTK200**NH-S2-E | 29145 | 70 | Natural white | 5000±300k | T5 |
| Ex-KTK200**NH-S2-E | 29145 | 70 | Natural white | 4000±300k | T5 |
| Ex-KTK200**WM-S2-E | 26230 | 70 | Warm white | 3000±300k | T5 |
| Ex-KTK240**CH-S2-E | 34136 |
240 | 70 | Cool white | 5700±300k | T5 |
| Ex-KTK240**NH-S2-E | 34136 | 70 | Natural white | 5000±300k | T5 |
| Ex-KTK240**NH-S2-E | 34136 | 70 | Natural white | 4000±300k | T5 |
| Ex-KTK240**WM-S2-E | 30884 | 70 | Warm white | 3000±300k | T5 |
Remarks:
1. The first * stands for Operating Voltage including default
-100-277VAC,D-347-480VAC.
2. The second * stands for Candela Distribution including
H3V3,H5V5,H6V6.
