ForestFrog Series 10W 15W LED Explosion Proof Work Light Power
Factor > 0.98
Features And Benefits:
1. High efficacy LED source. Long lifespan.High lumen output.
2. Good heat dissipation ,long life span .
3. Carrying handle design, portable and convenient.
4. Explosion proof design can use in the hazardous application.
5. High strength aluminum alloy housing. can endure 20 J impact
6. Meet the demand of the emergency illumination.
7. Adjustable lamp head can easily adjust illumination area.
8. Life span> 50,000 hours.
Specifications:
Standard &Certificate:
Ex Mark: Gas:
II2 G Ex db op is IIC T* Gb
Dust: II2 D Ex tb op is IIIC T* Db
Certificate:
| ATEX Certification NO.:LCIE 12 ATEX 3069X/01 | IECEx Certification NO.:IECEx CQM 12.0034X |
| CE | RoHS |
Executive Standard:
| (IEC)EN 60079-0 | (IEC)EN 60079-1 | (IEC)EN 60079-7 |
(IEC)EN 60079-28 | (IEC)EN 60079-31 | |
| EN 55015 | EN 61547 | EN 61000-3-2 |
| EN 61000-3-3 | EN 60598-1 | EN 60598-2-5 |
| EN 62031 | EN 62493 | IEC 62321-4 |
| IEC 62321-5 | IEC 62321-6 | IEC 62321-7-1 |
| IEC 62321-7-2 | IEC 62321-8 | |
Luminaire Efficacy: 136.5lm/W
Lifespan:>50,000 hours
Operating Voltage: 100-277 VAC/141-392 VDC
Power:10W,15W
Frequency:50/60Hz
Power Factor: ＞0.98
THD:＜10%
Insulation Class: Ⅰ
LED Driver: Over voltage protection/short circuit protection
Weight:5.2Kg
Size:209*236*303mm
Ambient Temperature: -20℃-+55℃
Earthing Protection: M4 (Internal & external earth bolts)
IP Code: IP66
Enclosure Material: Die-casting aluminium alloy
Enclosure Colour: Orange,RAL2011(optional grey RAL7040)
Coating: Epoxy powder coating
Exposed Fastener: Stainless steel
Protective Cover: Tempered glass,Stand 7J impact

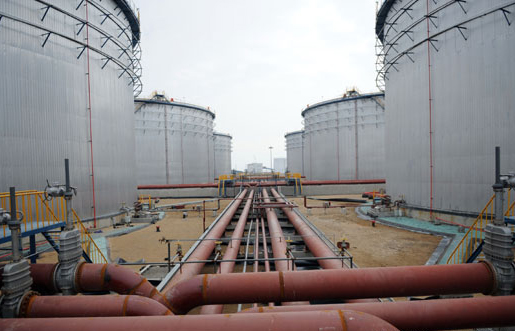

Applications:
1. Oil&Gas Exploration
2. Drilling
3. Oil Refinery
4. Petrochemical Plant
5. Power Plant
6. Pharmaceutical Plant
Ordering Information:
| Product type | Ex-KFF* | Ex-KFF* | Ex-KFF* |
| P/N | Ex-KFF*H6V6WM-B-E | Ex-KFF*H6V6NH-B-E | Ex-KFF*H6V6CH-B-E |
| Power(W) | 10/15W |
| Color temp. | Warm white | Natural white | Cool white |
| CCT(K) | 3000±300 | 4000±300 | 5700±300 |
| CRI | 80 | 70 | 70 |
| Luminous(lm) | 10W | |
| 15W | |
| Size(mm) | 209*236*303 |
| Weight(KG) | 5.2 |
| Ex Mark | II 2 G Ex db op is IIC T* Gb;II 2 D Ex tb op is IIIC T* Db |
| Temp. Classification | T6 |
| Rated input voltage(V) | 100~277VAC, 141~392VDC |
| Battery | Rated capacity(Ah) | 4.4 |
| type | Lithium battery |
| Lifespan | 500 cycles |
| Light Duration(h) | 10W | >10 |
| 15W | >6 |
Chargin g time
(after full discharge)(h) | 3 |
| LED source | High efficacy LED |
| Ambient temp.(℃) | -20~+55 |
| IP Code | IP66 |
| Insulation | I |
Candela Distribution:
